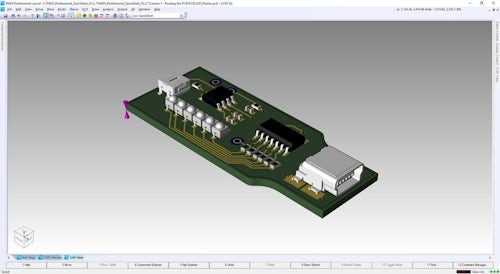

Stwórz projekt od początku do końca i zobacz jak prosta jest praca z PADS Professional oraz jego zaawansowanymi możliwościami, w tym m.in. projektowania Rigid-Flex, RF i zaawansowanego routingu, w tym HDI oraz zarządzaniem regułami.
Kiedy zaczynasz pracę z wersją próbną, załadowane zostanie wszystko, czego potrzebujesz, aby odkryć moc PADS Professional.

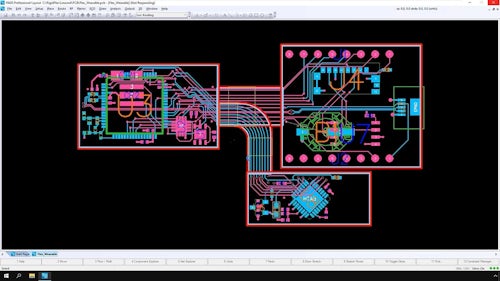

Learn how to create a rigid flex design quickly by leveraging PADS Professional’s correct by construction environment. The tutorial and sample files show the process of how to define rigid-flex stack-ups quickly, create multiple board outlines, and define bend areas. You will also be able to visualize a rigid flex board, and see the fabrication output.

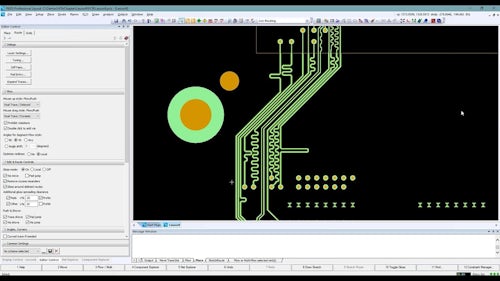

During the HDI and Advanced Routing chapter, you will learn how to create and use blind/buried vias, set up rules for placing vias in pads, setting up your design rules to use different via types based on net classes, how to create area rules and define areas in the layout, how to define length and trace matching rules, how to add blind/buried vias along with stack vias, how to use routing automation to add traces and use automation to length match groups of nets.

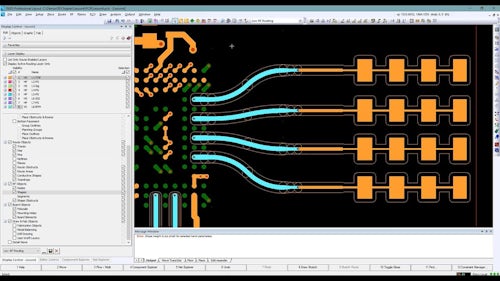

During the RF Design chapter, you will learn how to import RF shapes from a DXF, use this shape to create and symbol for your schematic, adding RF symbols to the schematic and define groups required for automation, how to define special localized rules for RF objects, using special routing automation for RF connections, and how to set up and use via stitching for trace contours and areas.
